 Latest firmware GMC-500+
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

helohe

1 Posts

Posted - 06/22/2022 :  06:05:31  Show Profile  Reply with Quote
I have a GMC-500+
Re 2.29

Do I have the latest firmware?
Reply #1

EmfDev

2131 Posts

Posted - 06/22/2022 :  12:40:15  Show Profile  Reply with Quote
Hi helohe, yes you have the latest firmware.
Go to Top of Page
Reply #2

Quaxo76

Italy
13 Posts

Posted - 08/10/2022 :  12:02:38  Show Profile  Reply with Quote
quote:
Originally posted by EmfDev

Hi helohe, yes you have the latest firmware.



I have Revision 2.40, isn't this newer than 2.29? Where can I found the firmwares with a changelog?

Thanks,
Cristian
Go to Top of Page
Reply #3

ullix

Germany
1107 Posts

Posted - 08/12/2022 :  02:58:28  Show Profile  Reply with Quote
quote:
I have Revision 2.40, isn't this newer than 2.29? Where can I found the firmwares with a changelog?


What info is GeigerLog giving? (After connecting: menu: Device --> GMC Series --> Show Extended Info)

To my knowledge there exists no list for firmwares, let alone a changelog ...
Go to Top of Page
Reply #4

ullix

Germany
1107 Posts

Posted - 08/14/2022 :  22:06:16  Show Profile  Reply with Quote
quote:
I have Revision 2.40, isn't this newer than 2.29?


With the recent surprise about the parts in a GMC-500+ with 2.40: can you open the counter and post a pic of the inner making?
Go to Top of Page
Reply #5

Quaxo76

Italy
13 Posts

Posted - 09/03/2022 :  13:19:36  Show Profile  Reply with Quote
Sorry guys, I forgot to check back on this post.
This isgeigerlog's extended info:
==== GMC Device Info Extended ========================================================
Configured Connection:        Port:'/dev/ttyUSB0' Baud:115200 TimeoutR:3s TimeoutW:1s
Connected Device:             'GMC-500+Re 2.40'
Configured Variables:         CPM1st, CPS1st, CPM2nd, CPS2nd
Configured Tube1 Sensitivity: 154  CPM/(µSv/h) (= 0.0065 µSv/h/CPM)
Configured Tube2 Sensitivity: 2.08 CPM/(µSv/h) (= 0.4808 µSv/h/CPM)
Date & Time from Device:      2022-09-03 23:15:05
Date & Time from GeigerLog:   2022-09-03 23:08:09.939
                              Device is faster than computer by 415.1 sec
Device Power State:           ON
FET (Fast Estimate Time):     60 seconds

Extended Info:
Device Battery Voltage:       4.31v Volt
Device Battery Type Setting:  ReChargeable
Device Gyro data:             X=0x3870, Y=0xfdc0, Z=0xe210   (14448,64960,57872)
                              (only GMC-320 Re.3.01 and later)
Device Alarm State:           ON
Device Speaker State:         OFF
Device Light State:           Timeout: 30 sec
Device Hist. Saving Mode:     CPM, save every minute
Device Hist. Threshold Mode:  CPM
Device Hist. Threshold CPM:   100
Device Hist. Threshold µSv/h: 0.500
Device Max CPM:               65535 (invalid if equal to 65535!)

Device Calibration Points:           CPM  =   µSv/h   CPM / (µSv/h)      µSv/h/CPM
   Calibration Point          #1:    100  =   0.650       153.85          0.00650
   Calibration Point          #2:  30000  = 195.000       153.85          0.00650
   Calibration Point          #3:   1000  =  46.800        21.37          0.04680

Device GMCmap Settings (as read from the counter):
   SSID                       *****
   Password                   ****
   Website                    www.gmcmap.com
   URL                        log2.asp
   UserID                     ****
   CounterID                  *****
   Period                     5
   WiFi:                      ON

GeigerLog's GMCmap Settings (as read from file geigerlog.cfg):
   SSID                       None
   Password                   None
   Website                    None
   URL                        None
   UserID                     None
   CounterID                  None
   Period                     None
   WiFi:                      OFF

GeigerLog's Configuration for Counter's Firmware:
   Memory (bytes):            1,048,576
   SPIRpage Size (bytes):     4,096
   SPIRbugfix (True | False): False
   Config Size (bytes):       512
   Calibr.1st (CPM/(µSv/h)):  154
   Calibr.2nd (CPM/(µSv/h)):  2.08
   Voltagebytes (1 | 5):      5
   Endianness (big | little): big
   Bytes in CP* records:      4

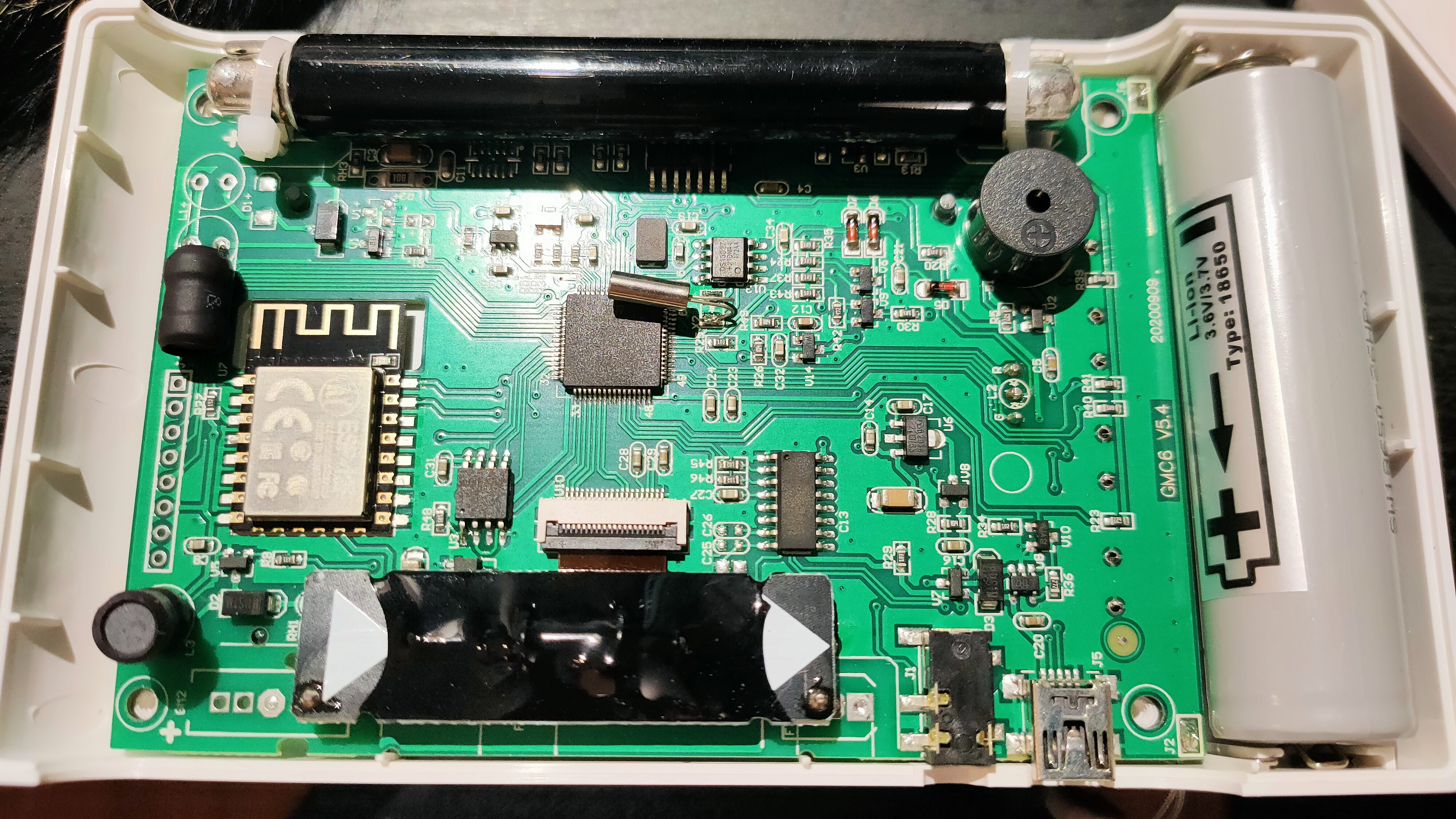

I'm attaching a photo of the internals, as requested.

Edited by - Quaxo76 on 09/03/2022 13:23:34
Go to Top of Page
Reply #6

ullix

Germany
1107 Posts

Posted - 09/04/2022 :  03:52:43  Show Profile  Reply with Quote
Quoted from Quaxo76:
Device Calibration Points:           CPM  =   µSv/h   CPM / (µSv/h)      µSv/h/CPM
   Calibration Point          #1:    100  =   0.650       153.85          0.00650
   Calibration Point          #2:  30000  = 195.000       153.85          0.00650
   Calibration Point          #3:   1000  =  46.800        21.37          0.04680

Oooops, a sensitivity for the 2nd tube of 21.37 CPM / (uSv/h), how did that happen?

The old 2nd tube was configured in the firmware with a sensitivity of 5.15, but after measurements of several users, including myself, the best estimate for this tube was only 2.08, see details in chapter "Appendix G – Calibration" in the GeigerLog manual.

Now the new tube, which GQ makes a secrecy fuzz about by refusing to tell what that tube is, is configured at 21.37, while the so-far only user Quaxo76 estimates it as "the sensitivity of the small tube was more or less 1/200 of the large one." http://www.gqelectronicsllc.com/forum/topic.asp?TOPIC_ID=9934

The main tube - mostly a M4011 but a J305 is also used - is given a sensitivity of 154, so a 1/200th would be 0.77! So, it stands at these "tiny" discrepancies:

GQ:    21.37
User:   0.77

I am putting the 21.37 as the default setting into the next GeigerLog for a GMC-500+ v2.40 counter, but my gut-feeling tells me this is nonsense.

GQ, convince us otherwise by showing data.



Edited by - ullix on 09/04/2022 03:55:25
Go to Top of Page
Reply #7

ullix

Germany
1107 Posts

Posted - 09/04/2022 :  03:57:55  Show Profile  Reply with Quote
Very helpful, thanks.

One more question: any opinion on what the black wrapper of the big tube is: Paper, Plastic, Metal, Aluminum?
Go to Top of Page
Reply #8

Quaxo76

Italy
13 Posts

Posted - 09/04/2022 :  16:03:10  Show Profile  Reply with Quote
quote:
the so-far only user Quaxo76 estimates it as "the sensitivity of the small tube was more or less 1/200 of the large one."



It's not totally impossible that I'm not remembering the correct number. I remember I was puzzled by the constant "zero" reading of the second tube, and started using increasingly hot samples, until it finally gave some clicks (thus proving it's not totally dead). I will try to repeat the experiment tomorrow and will record the results more precisely.

As for the black material around the big tube: it's not paper and it's not rubber. It's a kind of shrink-wrap (at one end it goes beyond the cylindrical part of the tube, and it gets a bit smaller but not enough to wrap the end of the tube). I can also see a "seam" of sorts along its length. It's not the rubbery kind of shrink-wrap, it's more plastic-y. Feels hard to the touch, though the part that is not tight on the glass, is still quite flexible.
The small board with the second tube, seems to be wrapped by the same material.

Edited by - Quaxo76 on 09/04/2022 16:11:17
Go to Top of Page
Reply #9

Quaxo76

Italy
13 Posts

Posted - 09/04/2022 :  16:08:23  Show Profile  Reply with Quote
quote:

Device Calibration Points:           CPM  =   µSv/h   CPM / (µSv/h)      µSv/h/CPM
   Calibration Point          #1:    100  =   0.650       153.85          0.00650
   Calibration Point          #2:  30000  = 195.000       153.85          0.00650
   Calibration Point          #3:   1000  =  46.800        21.37          0.04680

Oooops, a sensitivity for the 2nd tube of 21.37 CPM / (uSv/h), how did that happen?




I'm probably totally wrong about this, but isn't that the second calibration point for the first tube? Above it says
Configured Tube1 Sensitivity: 154  CPM/(µSv/h) (= 0.0065 µSv/h/CPM)
Configured Tube2 Sensitivity: 2.08 CPM/(µSv/h) (= 0.4808 µSv/h/CPM)

I seem to remember that the GMC has a three-point calibration, right? So the code you quoted could be the 3 points for the first tube...
Go to Top of Page
Reply #10

ullix

Germany
1107 Posts

Posted - 09/04/2022 :  23:20:00  Show Profile  Reply with Quote
Yes, you are wrong. There is no such thing as a 3-point calibration - this is a false claim made by GQ. See discussion in GeigerLog manual, chapter "Appendix G – Calibration".

GeigerLog internally is ignoring all related GQ-Firmware settings and uses its own, which you can configure to your liking. GeigerLog's default is 154 / 2.08

Edited by - ullix on 09/04/2022 23:20:44
Go to Top of Page
