• ADP-054 16 Bit EPROM 40/42 pin ZIF adapter V3 for Willem

For Standard/Enhanced Willem and GQ-2X,GQ-3X,GQ-4X, GQ-4x4 True-USB EPROM programmer.

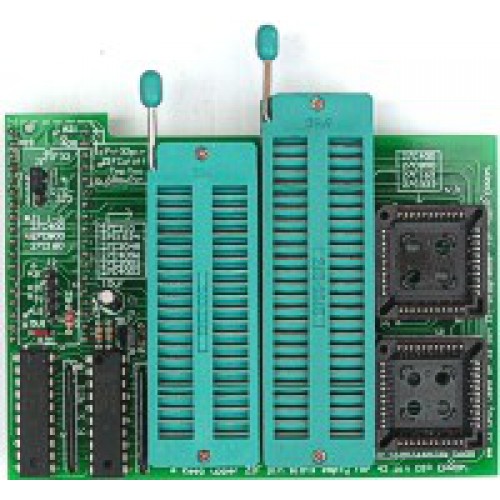

It has on board both DIP40 and DIP42 ZIF sockets and 2 PLCC44 sockets on board. So that be able to support both DIP and PLCC package 16 bit EPROMs easily.

Device supported on ZIF socket:
27C1024,27C2048, 27C4096,27C210,27C2002,27C4002,27C400, 27C800, 27C160, 27C322.

The adaptor set also includes 42 pin EPROM address wires for all 32 pin ZIF Willem programmer. For GQ-4X does not need address wires.

Jumper setting on board:
J1 2-3 short 27c322, 1-2 short for all others
J2 is extended address pin header, it is only for 42 pin EPROMs. Connect those pins to programmer address pin header, not the ZIF socket.
J5, chip compatibility jumper. Only change it if the chip has inconsistant reading, writting.

Write a review

Note: HTML is not translated!
    Bad           Good

ADP-054 16 Bit EPROM 40/42 pin ZIF adapter V3 for Willem

  • Product Code: ADP-054
  • Availability: In Stock
  • $29.99
