 GMC-320 Plus V5 Readings Rise to After 4 Hours
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

jtlockyer

USA
3 Posts

Posted - 12/22/2019 :  11:07:28  Show Profile  Reply with Quote
I need help with a GMC-320 Plus V5 where the readings will slowly creep-up to crazy-high levels beginning four hours after powering up.

My online readings logs are here:
www.gmcmap.com/historyData.asp?Param_ID=74008985570

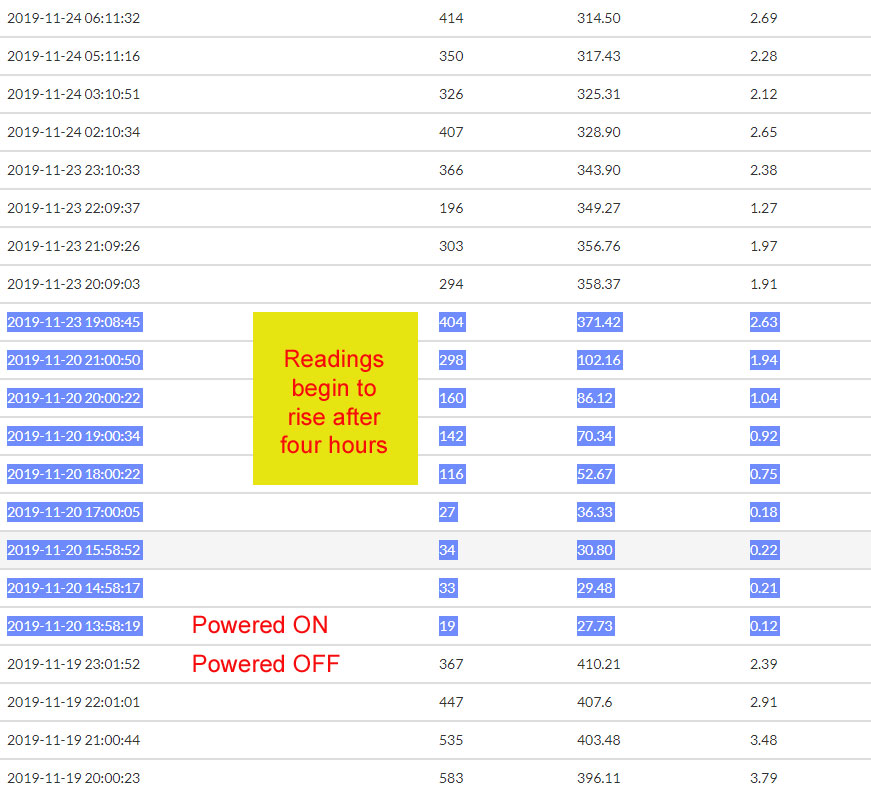

Normally at a cold power up (unit has been off for 12-hours or more), the readings are in the normal range 20-40 CPM. After about four hours, the readings begin to rise and in a few more hours, the readings are easily in the 300-500 range. (A monitoring station two miles way typical shows levels under 30.) Powering off, waiting 12 hours, and re-starting returns reading to normal levels. See the attached image for an example.

I have tried:
- Placement in four locations in my home
- Used different power supplies or sources
- Removed battery and factory reset
All have not made a meaningful change in the problem.

Appreciate some ideas to fix the problem or guidance on a replacement from GQ

Image Insert:

124234 bytes
Reply #1

ullix

Germany
472 Posts

Posted - 12/23/2019 :  01:07:39  Show Profile  Reply with Quote
Strange.

How old is the counter? Has it been like this since day 1, or did it slowly or suddenly come up and if the latter how long had it been in operation?

Looks very much like an electronic problem or a defect tube problem. I see some faint hope for a voltage problem, being set too high (or too low?). Can you measure the voltage from anode to cathode? Be aware of the need for a high Ohm resistor, like 1 GigaOhm; see discussion here:
http://www.gqelectronicsllc.com/forum/topic.asp?TOPIC_ID=3745

You could measure without this resistor. I won't damage anything, but you will see something between 120 and 150V, and will be too uncertain unless you see very different results.

EDIT: just one thought: your data jump up at 1800h, just when at this time of the year you might have switched on the light in the house. And I know that some of these tubes/counters do show a weird response to light (and temperature). Please pack the counter in a light-tight enclosure to verify that it is not the light, and keep it in an environment with stable room-temperature!

Edited by - ullix on 12/23/2019 01:33:57
Go to Top of Page
Reply #2

EmfDev

1205 Posts

Posted - 12/23/2019 :  11:25:46  Show Profile  Reply with Quote
jtlockyer, yes please check the voltage if you are able to. If not you can email me your serial number then we can send you a firmware update.

And please make sure that it is not from an external source.
Go to Top of Page
Reply #3

jtlockyer

USA
3 Posts

Posted - 01/08/2020 :  18:35:24  Show Profile  Reply with Quote
quote:
Originally posted by ullix
How old is the counter? Has it been like this since day 1, or did it slowly or suddenly come up and if the latter how long had it been in operation?

The meter is less than a year old (purchased in Feb-2019) and the issue only appeared a few months ago.

quote:
Looks very much like an electronic problem or a defect tube problem. I see some faint hope for a voltage problem, being set too high (or too low?). Can you measure the voltage from anode to cathode?

I used a Fluke 87V to take some voltage measurements:
  • USB Power is 5.07VDC at 50mA

  • Voltage across the battery while on USB and 100% charged: 4.2VDC

  • Voltage across battery while under load; 4.2VDC

  • Voltage at C23: 4.7VDC

  • Voltage at C26: 3.3VDC

  • Voltage at C1: 349VDC

  • Voltage at C2: 3.3VDC

  • Voltage at Wi-Fi Module: 3.3VDC

  • Voltage at terminal J2 G-to-V: 3.3VDC

The voltage across the tube shows 291VDC and I am not familiar with this type of electrical component, so I could be reading it incorrectly.
Thanks for the ideas!


Go to Top of Page
Reply #4

jtlockyer

USA
3 Posts

Posted - 01/08/2020 :  18:49:15  Show Profile  Reply with Quote
quote:
Originally posted by EmfDev

jtlockyer, yes please check the voltage if you are able to. If not you can email me your serial number then we can send you a firmware update.

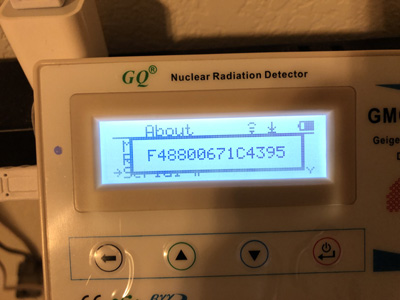

The serial number is F48800671C4395. I am at revision 5.20
