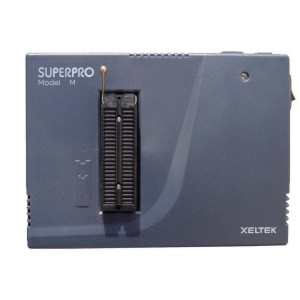

PRG-Xeltek-SPM SuperPro M Universal IC Chip Device Programmer

Price:
US$495.00 CAD$700.92 Euro€470.2 GBP£387.49
List Price US$550.00 ~ You save US$55.00
Visits: 3101
*Legacy Product*





Product Description:



Highlights:

Fastest Lowest-cost Programmer: With ARM7 MCU it gives ultra-fast programming experience.

Programs devices with Vcc as low as 1.2V

Built-in 48 universal pin drivers

CE and ROHS Compliant

Expanded Features:

Programs devices with Vcc as low as 1.2V.

Ultra fast programming.

Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.

The programmer operates in PC hosted mode.

Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.

ISP/ICP programming capability through optional ISP/ICP adapter.

Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.

Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
br>Compatible with Windows 7 & Vista & XP 32/64 bit

Includes the following advanced and powerful software functions:

Chip operation starts immediately upon proper chip insertion in Production Mode.

The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.

Password protection provides security for project files and production volume control.

The Batch command combines device operations like program, verify, security into a single command at any sequence.
Auto Increment Function option to indicate an automatic increase in the serial number written to each chip.

A Log file provides quality tracking.

Weight: 3.00 lbs

Warranty: 2 Years
