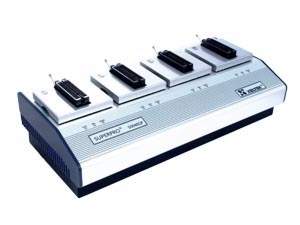

PRG-XLTK-5004EGP SuperPRO 5004EGP

Price:
US$4395.00 CAD$5933.25 Euro€4614.75 GBP£3779.7
List Price US$4495.00 ~ You save US$100.00
Current stock: 1
Visits: 3513
*Legacy Product*



Description:


Features:
  • Supports 47,000+ IC devices from 180 manufacturers and continuing
  • Programs devices with Vcc as low as 1.2V.
  • Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds.
  • Built with 144 universal pin-drivers for support of today's most complex devices.
  • Universal and device independent socket adapters available for various package types up to 144 pins.
  • 4 independent programming modules operating concurrently for high speed programming.
  • USB2.0 interface to a PC for high speed programming.
  • ISP/ICP programming capability through optional ISP/ICP adapter.
  • Only IC manufacturer approved programming algorithms provide high reliability.
  • Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
  • Over-current and over-voltage protection for safety of the chip and programmer hardware.
  • Compatible with Windows Vista and Win 7 x64
  • CE and ROHS Compliant
  • Includes the following advanced and powerful software functions:
    • Chip operation starts immediately upon proper chip insertion in Production Mode.
    • Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
    • Password protection provides security for project files and production volume control.
    • Batch command combines device operations like program, verify, security into a single command at any sequence.
    • Serial number generators are available as standard or customer-specific functions.
    • Log file provides production quality tracking.
Speed Comparison:

    DEVICE

    P + V (sec)

    TYPE

    K8P6415UQB

    11.3

    64Mb NOR FLASH

    AM29DL640G

    27.6

    64Mb NOR FLASH

    AT28C64B

    0.9

    64Kb EEPROM

    24AA128

    4.5

    128Kb EEPROM

    B25F640S33

    30.4

    64Mb EEPROM

    AT89C55

    7.5

    20KB FLASH MCU

    ST72F324BK4B5

    3.8

    32KB FLASH MCU

    MB89F538

    1.67

    32KB FLASH MCU

    UPD78F92344

    8.8

    16KB FLASH MCU

Device Updates:
  • XELTEK updates software and device algorithm regularly.
  • Updates are available by mail at a nominal charge.

Warranty Support:

  • Standard 2 Years Warranty: Included with purchase of SuperPro 5004EGP. Covers device update and repair.


Hardware & Electrical Specifications:
  • Device Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND) n, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic.
  • Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP,TSOPII, PSOP,TSSOP,SON,EBGA, FBGA, VFBGA, GA, CSP, SCSP etc.
  • PC interface: USB2.0 (High speed)
  • Stand-alone Function: None
  • Power supply. AC Adaptor: Input AC 100V- 240V;Output: 12V/6A.
  • Main unit: Dimensions 438 * 216 * 94 mm ; Weight 4.3 Kg
  • Package: Dimensions 550 * 252 * 145 mm; Weight 5.9Kg
Items included:
  • Main unit with DIP48 Adapters
  • AC adapter
  • Software CD
  • USB2.0 Cable
  • User's Manual
  • Register Card
Optional accessories:
  • Adaptor in varies packages
