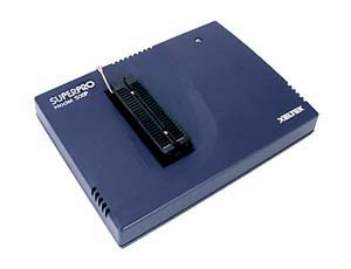

PRG-XELTEK-17208 SuperPro 610P Programmer

Price:

US$645.00

CAD$890.1

Euro€612.75

GBP£548.25

List Price US$845.00 ~ You save US$200.00
Visits: 3738

*Legacy Product*

Description:

Features:

· Supports 25,841 IC devices from 163 manufacturers and continuing.
· Programs devices with Vcc as low as 1.2V.
· Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds and 64Mb EEPROM in 43 seconds.
· Built with 48 universal pin-drivers for support of today’s most complex devices. Universal and device independent socket adapters are available for various packages.
· The programmer operates in either PC hosted mode.

– Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.

· ISP/ICP programming capability through optional ISP/ICP adapter.
· Only IC manufacturer approved programming algorithms provide high reliability. Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
· Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
· Compatible with Windows Vista x32 and Windows XP x32
· Includes the following advanced and powerful software functions:

– Chip operation starts immediately upon proper chip insertion in Production Mode.
– The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
– Password protection provides security for project files and production volume control.
– The Batch command combines device operations like program, verify, security into a single command at any sequence.
– Serial number generators are available as standard or customer-specific functions.
– A Log file provides quality tracking.

Speed Comparison:

Device	Program + Verify (Sec)	Compare with SP3000U	Type
AT28C64B	0.8(P)+0.1(V)= 0.9(s)	1.2(P)+0.8(V)= 2.0(s)	64Kb EEPROM
24AA128	2.7(P)+1.8(V)= 4.5(s)	5.0(P)+4.0(V)= 9.0(s)	128Kb EEPROM
QB25F640S33B60	29.0(P)+14.4(V)= 43.4(s)	55.2(P)+41.4(V)= 96.6(s)	64Mb EEPROM
AT89C55WD	2.5(P)+0.4(V)= 2.9(s)	3.3(P)+1.0(V)= 4.3(s)	20KB FLASH MCU
S25FL064A	43.9(P)+14.7(V)= 58.6(s)	72.8(P)+41.4(V)= 114.2(s)	64Mb SPI EEPROM
PIC16F876A	10.1(P)+0.8(V)= 10.9(s)	22.1(P)+06.2(V)= 28.3(s)
PIC18F442	5.1(P)+1.1(V)= 6.2(s)	13.6(P)+06.7(V)=20.3(s)

Device Updates:

XELTEK updates software and device algorithm regularly.

View the latest Device List.

Download the current software version free of charge at Download Center.

Warranty Support:

A Standard 2-Year Warranty is included with purchase of SuperPro 600P, which covers device update, repair, and FedEx GND shipping back to customer.

Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase. After the 2-year warranty period expires, XELTEK charges $175 for repairing SuperPro 600P Programmer.

Online Technical Support is also available 24 hours or you may call during our business hours Monday through Friday 7:30AM-12:00PM & 1:00PM - 4:30PM (PST).

Hardware & Electrical Specifications:

Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic

Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP,… PC interface: USB2.0 (High speed)

Power supply: AC Adapter: Input AC 90V- 250V, 50/60Hz; DC Output: 12V/2A; power 15W

Main unit: Dimensions 178(L) * 130(W) * 40(h) mm;

Package: Dimensions 320(L) * 300(W) * 85(H) mm; Weight 1.8Kg

Items included:

SuperPro 600P Programmer with w/ 48pin driver

AC adapter

Software CD

USB2.0 Cable

Optional accessories:

Adapter in various packages
