EMF-360Plus EMF-360 Plus Multi-Field/Multi-Function EMF Meter

Price:
US$95.00 CAD$128.25 Euro€85.5 GBP£79.8
Visits: 64935




Add to wish list


Description:

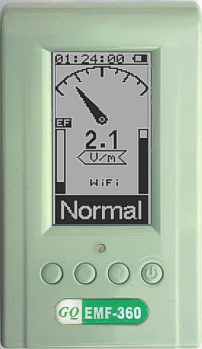

Advanced GQ EMF-360 Plus Multi-Field, Multi-Function
EMF Meter and RF Spectrum Power Analyzer

The GQ EMF-360 Plus multi-function digital EMF meter is designed to be a portable and convenient device. It can be used as industrial, commercial maintenance, research, evaluation, simulation and other analytical or scientific applications in areas such as industrial plants, public utilities, universities, laboratories, and electronic repair shops. The device integrated testing features include three axis Electromagnetic Fields, Electric Field, Radio Frequency and Radio Spectrum Power Analyzer (EMF-360+/EMF-360 Plus only). The meter is able to identify the common source from EMF measured, such as Power Line, WiFi etc. It also comes with built-in audible and visual alarm. It can be used for EMF,EF, RF detection and monitoring both indoor and outdoor(protected), as well as in other similar environments. It can continually monitor the radiation. When connect the device to a PC, PC software can download the radiation data to the computer and the user is able to analyze those data later. The device also installed a high contrast black/white LCD module and one front LED indicator.

The built-in electronic gyroscope let user to read the data from upside down view easily.

Safety suggestion indicator provides a simple and easy way to understand overall radiation risk.

The device is equipped with an USB port, utilized for communication and external power supply/charging of the internal rechargeable Li-Ion 3.6V/3.7V battery.The GQ EMF-360 Plus internal rechargeable battery can be charged with a standard USB port, USB charger or with a computer USB port. Using the external power, continuous data monitoring is possible. Using either power adapter you will not have to worry about the batteries charge condition or any data loss.The EMF-360 Plus also has a real time clock on board for time related data measurement.

The meter installed multiple sensors to ensure maximum scale/range measurement and highest accuracy.

High sensitivity meter let you check EMF/RF radiation easily. Examples: computer mouse, car remote key, cell phone, cordless phone, static electricity, electric field, WiFi, computer laptop, microwave, electric heater, hair dryer, vehicle engine, light, outdoor power line. With RF spectrum power analyzer, you can monitor the WiFi signal power, Smart meter signal power, spy wireless video camera signal, even track radio/TV signal in air.

Model Selection Guide
EMF-360EMF-360 PlusEMF-380
Three Axis EMFYesYesYes
RF PowerUp to 7GHzUp to 7GHzUp to 7GHz
RF Spectrum Power AnalyzerNo2.4GHz-2.5GHz2.40 to 2.5GHz
240 to 11040Mhz
2.30 to 125.34MHz
64 to 108MHz
520 to 1710KHz
153 to 534KHz
Realtime ClockNoNoYes





Specification:

EMF (Electromagnetic Field)
  • Triple axis (X, Y, Z) up to 300Mhz
  • Range: 0.0~2000mG
  • Resolution: 0.1/1 mG or 0.01/0.1uT
  • Accuracy:+/-15%

    EF (Electric Field)
  • Range: 0V/m to 2000V/m
  • Resolution: 0.1 V/m
  • Accuracy: +/-15%

    RF Field (Radio Frequency Field)
  • Frequency: up to 7GHz

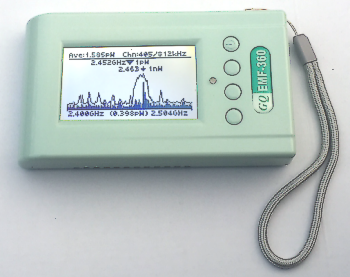

    RF Spectrum Power Analyzer
  • Frequency band: 2.4GMhz to 2.5GMHz
  •     Frequency step: 25KHz to 405KHz
        Frequency span: 58KHz to 812KHz

  • Audible alarm: buzzer
  • Visual alarm: green, red LED
  • Operating temperature & humidity: 5 to 40 degree C, below 80% RH
  • Working Voltage: 3.6-3.7V
  • Display: LCD dot matrix, back lighted
  • Power Consumption: 25mW to 125mW (backlight dependant)
  • Power: Supply 3.7V Li-Ion battery / USB power
  • Dimensions 135 x 78 x 25 mm (5.25'x 3' x 1')


  • Auto Identify the EMF Radiation Possible SourceGQ EMF Meter is capable to identify the common possible EMF radiation source once it collected valid data from the source. The common sources include: Power Line, WiFi, Microwave, static electricity, AC EF(AC voltage Electric Field) etc. It also can provide detailed information of the source. Such as power and approximate frequency.


    Open Communication Protocol
    GQ EMF Meter provides open GQ RFC1701 communication protocol for easier system integration. User is able to send command to operate the meter remotely.See software download section for detailed GQ RFC1701 protocol.

    GQ EMF-PRO Utility Software
    GQ EMF Meter comes with a free Windows utility software. User is able to remote control the unit and get the EMF,RF data from device. It also can save the data into the .csv spredsheet file.See software download section for detailed GQ RFC1701 protocol.

    For technical support, please visit our support forum: http://www.gqelectronicsllc.com/forum/default.asp

    GQ EMF-360 Plus 1:1 Simulator
    Try the exact user interface demo(simulation) software of GQ EMF Meter before you buy it, please visit GQ Electronics LLC download page.Click here to download

    User Manual/User Guide
    A complete user manual/guide can be downloaded from GQ Electronics download page.Click here to download

    Package List:
    1. GQ EMF meter main unit.
    2. USB cable
    3. Quick start guide
    4. Download link for a complete user guide in PDF version.


    Warranty
    One year warranty
